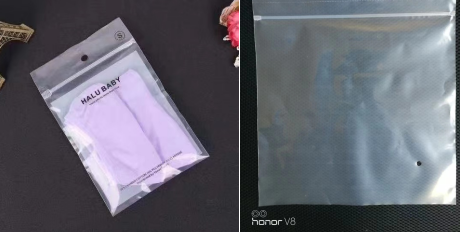

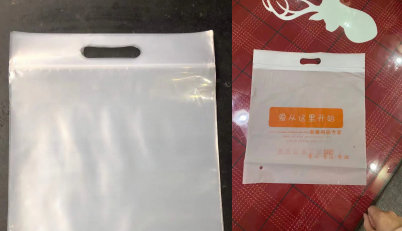

Bone bag sample display:
Main technical parameters:
|
Model |
YF-A900 |
|
Production Speed |
40-130PCS/min |
|
Bag-making width |
100-800mm |
|
Bag-making Length |
50-750mm |
|
Thickness |
0.03-0.3mm |
|
Power Supply |
220V/380V |
|
Total Power |
6KW |
|
Overall Dimension(L*W*H) |
6500*1450*1900mm |
Main configuration list of bone bag equipment:
|
serial number |
name |
Model |
vendor |
quantity |
Warranty |
|
1 |
PLC (Upgraded) |
TD2023 |
CITIC Electronics |
1 |
One-year warranty |
|
2 |
Ultrasonic generators |
2500W |
Jiarong |
1 |
One-year warranty |
|
3 |
Touch the display screen |
5 inches |
CITIC Electronics |
1 |
One-year warranty |
|
5 |
Frequency converters |
1.5kw |
Kovo |
2 |
One-year warranty |
|
6 |
Frequency converters |
0.75 kw |
Kovo |
1 |
One-year warranty |
|
7 |
Photoelectric eye |
|
Dragon |
1 |
One-year warranty |
|
8 |
Servo motor |
2.6kw |
Wade |
1 |
One-year warranty |
|
9 |
Magnetic powder brakes |
5kg |
Ruihuan |
1 |
One-year warranty |
|
10 |
Proximity switches |
|
CITIC Electronics |
Several |
One-year warranty |
|
11 |
Turbomotors |
1.5KW |
Shanghai Henggong |
1 |
One-year warranty |
|
12 |
Low-voltage appliances |
|
People's electrical appliances |
Several |
One-year warranty |
|
13 |
Solenoid valves |
|
Airtac |
Several |
One-year warranty |
|
14 |
Static Eliminator |
|
Haixian Electric |
1 |
One-year warranty |
|
15 |
Geared motors |
1.5kw |
Expansion speed |
1 |
One-year warranty |
|
16 |
Rubber rollers |
|
Yuanfeng customized |
2 groups |
One-year warranty |
|
17 |
Auto-tension |
|
Ming Zhiheng |
1 |
One-year warranty |
|
18 |
punch |
8mm |
Yuanfeng customized |
1 |
One-year warranty |
